Intelligent Paper Cup Machine

Max. Capacity:80pcs/min

Compressed air:0.6-0.8MPa,0.6m³/min

Product range:(D1)Φ150-200mm(H)60-200mm / (D2)ф100-160mm(h)7-12mm

Online Inquiry Whatsapp

Features

NSP16-170 high speed intelligent paper cup machine is a new generation of intelligent and efficient paper cup forming equipment. It features stable performance and long-lasting durability. Equipped with servo motors and motion control systems, it achieves stable, efficient and intelligent paper cup forming. The entire machine is controlled by PLC and monitored by full-process photoelectric tracking. It can be optionally equipped with a visual inspection system to remove defective products. This model is suitable for high grams, high-end hot/cold paper cups ranging from 5 to 16 oz, such as branded coffee cups and milk tea cups.

Details

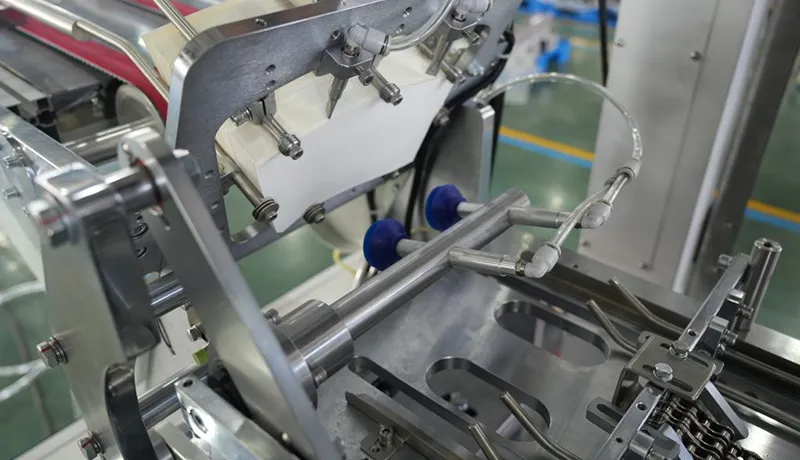

Rotary Paper Suction

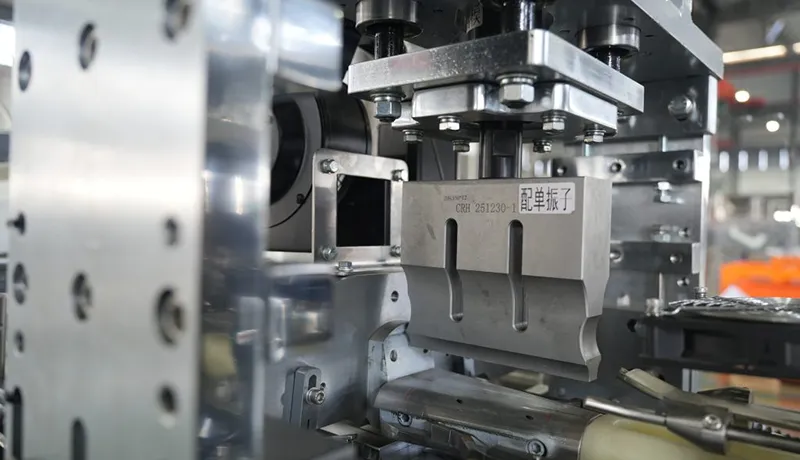

Hot Air Servo Ultrasonic for side sealing

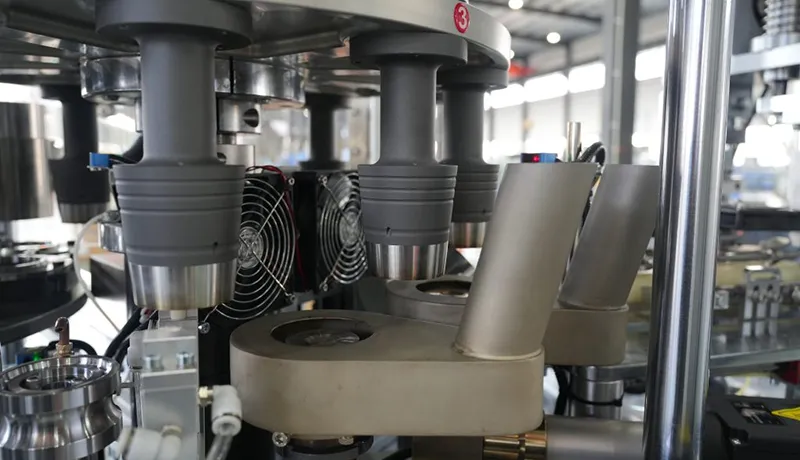

Double hot air for bottom sealing

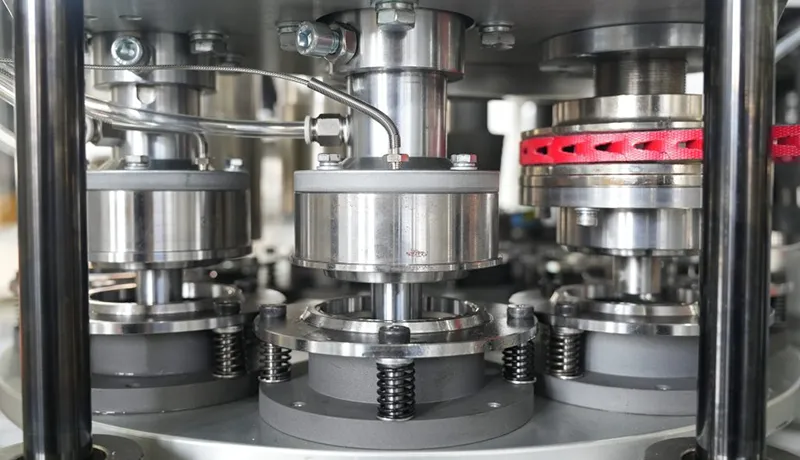

Nine-Station Female mold Tripple curling stations

Parameters

Model	NSP16-170
Machine encasement dimension	3000 x 1600 x 2250mm
Cup counting holder packing specifcation	1250 x 700 x 1900mm
Power	Three-phase 50hz, 380V, 20KW
Compressed air	0.6-0.8MPa, 0.5m³/min
Max Capacity	170pcss/min
Paper materials	Single PE/Double PE/PLA
Paper grams	150-350g/㎡
Product range	(D1) Top diameter 60-95mm (H) Height 50-135mm (D2) Bottom diameter 40-75mm (h) Bottom depth 5-12mm

Mechanical Quality Guarantee

1. Mechanical parts warranty 5 years, electrical parts and quick-wear parts warranty 1 year.

2. All parts on the table are easy for maintenance.

3. All parts under table are lubricated by oil. Oil should be changed every 4-6 months with specified oil.

Production Efficiency

1. Production output up to 81,600 cups per shift (8 hours), up to 7.3 million cups per month (3 shifts).

2. Under normal production, the pass rate is is higher than 99%.

3. With packing machine, one operator can handle several machines at the same time.
